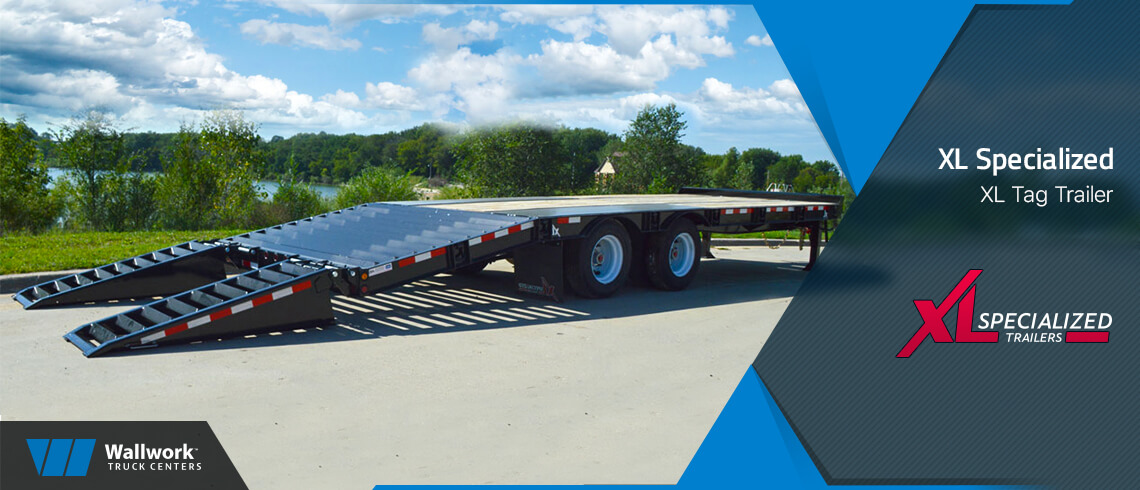

XL Tag Trailers
XL Tags are available as a two or three axle, in four capacities with a variety of deck lengths. Choose the deck length that works for you. Load you equipment with ease. XL Tags come with a 6’ beaver tail with a 10 degree load angle, and 2 flip over self-cleaning spring assist ramps. Use the grab handles to flip over.
Highlights
10 D-rings per side.
T-1 flange, 80K web.
3" channel crossmembers on 16" centers are standard.
XL 24-T-T
CAPACITY
- 24,000 LB OVERALL
PINTLE HITCH
- ADJUSTABLE PINTLE HITCH 19" - 31 1/2"
- 4" HEAD BOARD
- DUAL SPEED LANDING GEAR, 24K LIFTING CAPACITY
- TOOLBOX IN TONGUE
- SAFETY CHAINS, GRADE 70
MAIN DECK
- 20' - 25' LONG
- 34" LOADED DECK HEIGHT
- T-I FLANGE, 80K WEB
- 2" X 8" TREATED DECKING
- STEEL OVER WHEELS
- 3" CHANNEL CROSSMEMEBERS ON 16" CENTERS
- 5" CHANNEL SIDE RAILS
- MAIN FRAME PIERCED BEAMS
- 10 BENT D-RINGS PER SIDE
- FORMED STEP ON FRONT OF DECK
- 5' WOOD BEAVER TAIL WITH 15 DEGREE LOAD ANGLE
- (2) 5' FLIP OVER SPRING ASSIST RAMPS (SELF-CLEANING)
- GRAB HANDLES ON RAMPS
- MUDFLAPS
SUSPENSION
- SPRING/DEXTER
OVERALL LENGTH & WIDTH
- OVERALL LENGTH: 30' 2" - 36' 2"
- OVERALL WIDTH: 102"
AXLES
- (2) 12,000 LB NOMINAL
- 48 1/2" SPACING
- ELECTRIC BRAKES WITH BREAK AWAY SWITCH
- 16 1/2" X 7" BRAKES
WHEELS & TIRES
- 16" STEEL RIMS
- 235/ 85R/ 16 TIRES
LIGHTING
- SEALED WIRING HARNESS
- RUBBER MOUNTED LED LIGHTS
- 2 TAIL LIGHT PACKAGE WITH ALUMINUM COVER
PAINT
- 1 YEAR WARRANTY
- BLACK, IH RED, OR NEW CAT YELLOW
- AIR & ELECTRIC DONE AFTER PAINT
XL 40-T-T
CAPACITY
- 40,000 LB OVERALL
PINTLE HITCH
- ADJUSTABLE PINTLE HITCH 19" - 31 1/2"
- 4" HEAD BOARD
- DUAL SPEED LANDING GEAR, 100K LIFTING CAPACITY
- TOOLBOX IN TONGUE
- SAFETY CHAINS, GRADE 70
MAIN DECK
- 20' - 25' LONG
- T-I FLANGE, 80K WEB
- 1 5/8" RAISED OAK DECKING
- STEEL OVER WHEELS
- 3" CHANNEL CROSSMEMEBERS ON 16" CENTERS
- 8" CHANNEL SIDE RAILS
- MAIN FRAME PIERCED BEAMS
- 10 BENT D-RINGS PER SIDE
- FORMED STEP ON FRONT OF DECK
- 6' WOOD BEAVER TAIL WITH 10 DEGREE LOAD ANGLE
- (2) 5' FLIP OVER SPRING ASSIST RAMPS (SELF-CLEANING)
- GRAB HANDLES ON RAMPS
- MUDFLAPS
SUSPENSION
- SPRING/HUTCH H-9700
OVERALL LENGTH & WIDTH
- OVERALL LENGTH: 31' 2" - 36' 2"
- OVERALL WIDTH: 102"
AXLES
- (2) 20,000 LB NOMINAL
- 49" SPACING
- 12 1/4" X 7 1/2" BRAKES
- SPRING BRAKES ON 1 AXLE
WHEELS & TIRES
- 17.5" STEEL RIMS
- 235/ 70R/ 17.5 TIRES
LIGHTING
- SEALED WIRING HARNESS
- RUBBER MOUNTED LED LIGHTS
- 2 TAIL LIGHT PACKAGE WITH ALUMINUM COVER
PAINT
- 1 YEAR WARRANTY
- BLACK, IH RED, OR NEW CAT YELLOW
- AIR & ELECTRIC DONE AFTER PAINT
XL 50-T-T
CAPACITY
- 50,000 LB OVERALL
PINTLE HITCH
- ADJUSTABLE PINTLE HITCH 19" - 31 1/2"
- 4" HEAD BOARD
- DUAL SPEED LANDING GEAR, 140K STATIC, 100K LIFTING CAPACITY
- TOOLBOX IN TONGUE
- SAFETY CHAINS, GRADE 70
MAIN DECK
- 20' - 25' LONG
- T-I FLANGE, 80K WEB
- 1 5/8" RAISED OAK DECKING
- STEEL OVER WHEELS
- 3" CHANNEL CROSSMEMEBERS ON 16" CENTERS
- 8" CHANNEL SIDE RAILS
- MAIN FRAME PIERCED BEAMS
- 10 BENT D-RINGS PER SIDE
- FORMED STEP ON FRONT OF DECK
- 6' WOOD BEAVER TAIL WITH 10 DEGREE LOAD ANGLE
- (2) 6' FLIP OVER SPRING ASSIST RAMPS (SELF-CLEANING)
- GRAB HANDLES ON RAMPS
- MUDFLAPS
SUSPENSION
- SPRING/HUTCH H-9700
OVERALL LENGTH & WIDTH
- OVERALL LENGTH: 31' 2" - 36' 2"
- OVERALL WIDTH: 102"
AXLES
- (2) 20,000 LB NOMINAL
- 49" SPACING
- 12 1/4" X 7 1/2" BRAKES
- SPRING BRAKES ON 1 AXLE
WHEELS & TIRES
- 17.5" STEEL RIMS
- 235/ 70R/ 17.5 TIRES
LIGHTING
- SEALED WIRING HARNESS
- RUBBER MOUNTED LED LIGHTS
- 2 TAIL LIGHT PACKAGE WITH ALUMINUM COVER
PAINT
- 1 YEAR WARRANTY
- BLACK, IH RED, OR NEW CAT YELLOW
- AIR & ELECTRIC DONE AFTER PAINT
XL 60-T-T
CAPACITY
- 60,000 LB OVERALL
PINTLE HITCH
- ADJUSTABLE PINTLE HITCH 19" - 31 1/2"
- 4" HEAD BOARD
- DUAL SPEED LANDING GEAR, 140K STATIC, 100K LIFTING CAPACITY
- TOOLBOX IN TONGUE
- SAFETY CHAINS, GRADE 70
MAIN DECK
- 20' - 25' LONG
- T-I FLANGE, 80K WEB
- 1 5/8" RAISED OAK DECKING
- STEEL OVER WHEELS
- 3" CHANNEL CROSSMEMEBERS ON 16" CENTERS
- 8" CHANNEL SIDE RAILS
- MAIN FRAME PIERCED BEAMS
- 10 BENT D-RINGS PER SIDE
- FORMED STEP ON FRONT OF DECK
- 6' WOOD BEAVER TAIL WITH 10 DEGREE LOAD ANGLE
- (2) 6' FLIP OVER SPRING ASSIST RAMPS (SELF-CLEANING)
- GRAB HANDLES ON RAMPS
- MUDFLAPS
SUSPENSION
- SPRING/HUTCH H-9700
OVERALL LENGTH & WIDTH
- OVERALL LENGTH: 31' 2" - 36' 2"
- OVERALL WIDTH: 102"
AXLES
- (2) 20,000 LB NOMINAL
- 49" SPACING
- 12 1/4" X 7 1/2" BRAKES
- SPRING BRAKES ON 1 AXLE
WHEELS & TIRES
- 17.5" STEEL RIMS
- 235/ 70R/ 17.5 TIRES
LIGHTING
- SEALED WIRING HARNESS
- RUBBER MOUNTED LED LIGHTS
- 2 TAIL LIGHT PACKAGE WITH ALUMINUM COVER
PAINT
- 1 YEAR WARRANTY
- BLACK, IH RED, OR NEW CAT YELLOW
- AIR & ELECTRIC DONE AFTER PAINT
