KENWORTH T440

PERFFECT FOR TOUGHEST JOB

KENWORTH T440. A TRUCK BUILT TO LAST

The T440's rugged Kenworth chassis is likely to outlast any equipment you choose to attach to it.

When “medium duty” just doesn’t seem heavy duty enough for the job you have in mind, here’s a great idea: new Kenworth T440. A workhorse solution for more demanding regional haul, pickup and delivery, municipal and vocational applications, the new T440 far outpaces other trucks in this category.


KENWORTH T440 Specifications

T440 Specifications

Engine

T440

PACCAR PX-9 Engine, 260 HP, 720 lb-ft of Torque Standart
PACCAR PX-9 Engines up to 380 HP Optional
Cummins ISL-G Natural Gas Powered Engines up to 300 H Optional
Fire Truck Ratings Available up to 400 HP Optional
CARB Emission Reduction Feature Available Optional

Starting and Charging

T440

Electrical System with Centralized Power Distribution Incorporating Plug-In Style Relays and Circuit Protection for Serviceability Standart
160 Amp Bosch Alternator Standart
PACCAR 12 Volt Starter Standart
Two PACCAR Dual Purpose Batteries Standart
130 and 320 Amp Alternator Options Optional
3 Dual purpose, 2 Starting and 2 or 3 Deep Cycle Optima Batteries Optional

Exhaust Options

T440

DPF and SCR RH Under with Vertical Tailpipe RH Side of Cab Standart
DPF and SCR RH Under with Vertical Tailpipe RH Back of Cab Optional
Vertical Independent SCR/DPF RH/LH Back of Cab Optional
Vertical Independent Muffler RH Back of Cab (ISL-G Only) Optional
Horizontal Catalyst/Horizontal Tailpipe (ISL-G Only) Optional

Transmission

T440

Eaton Fuller FS6406A 6-Speed Standart
Clutch - Eaton Fuller Standart
6, 9, 10, 11 and 13 Speed Eaton Fuller Transmissions Optional
Eaton Ultra Shift Plus Transmissions Optional
Allison Automatic 5 and 6 Speed HS, RDS and EVS Optional

Frame / Axle / Suspension / Brakes

T440

Frame - 10 5/8" x 3 1/2” x 5/16” Steel - 120,000 psi - Heat Treated Standart
Front Axles - Meritor, 12,500 lb. Standart
Front Springs - Taperleaf w/Shocks, 12,000 lb. Standart
Single Rear Axle - Dana Spicer, 21,000 lb. Standart
Rear Suspension - Reyco 21,000 lb. Standart
ABS System - Bendix Standart
49.4” Bumper Setting Standart
Frame - 10 3/4” x 3 1/2” x 3/8”, 10 11/16” x 3 1/2” x 1/2”, 11 5/8” x 3 1/2” x 3/8” Optional
Full Frame Insert for 10 5/8”, 10 3/4” and 11 5/8” Optional
Partial Inserts for 10 5/8”, 10 3/4” and 11 5/8” Optional
Front Axles - Dana Spicer, 12,000 to 22,000 lb. Optional
Front Axles - Meritor, 12,500 to 20,000 lb. Optional
Front Springs - Taperleaf w/Shocks, 13,200 to 22,000 lb. Optional
Single Rear Axles - Dana Spicer, 22,000 to 30,000 lb. Optional
Dual Rear Axles - Dana and Meritor from 40,000 to 46,000 lb. Optional
Rear Suspension - 23,000 to 46,000 lb. - Kenworth, Reyco, Hendrickson, Neway and Chalmers Optional
Single Pusher Axle Optional
Single Tag Axle Optional

Wheels / Tires

T440

Wheels - Steel 22.5” Standart
Tires - Bridgestone Standart
Up to 425 Series Optional
Alcoa Dura-Bright, LvL One and Ultra One Aluminum Wheels Optional
Aluminum 22.5” and 24.5” Optional

Fuel / DEF Tanks

T440

Aluminum - 56 Gallon, 22” Round Aluminum Standart
Round Aluminum 22” and 24.5” from 75 to 150 gallons Optional
DEF Tanks - Small, Medium, Large and Clear BOC Optional

Battery Boxes / Bumpers

T440

Aluminum and Steel Battery Box with Aluminum Diamond Plate Cover Standart
Bumper - Tapered Steel Channel - Painted Standart
In Cab Battery Box Under Passenger Seat Optional
Bumper - Steel Channel - Chrome Optional
Bumper - 3-Piece Aerodynamic Optional

Cab / Hood / Interior

T440

Cab - Aluminum and Composite Standart
Hood - Sloped Aerodynamic Standart
Interior - Smooth Gray Vinyl with Black Dash Trim Standart
Power Door Locks Standart
Passenger-side Electric Window Standart
Kenworth Air Cushion High Back Driver Seat Standart
9 Gauge Instrumentation Standart
7.5” x 5” Body Builder Instrument Panel Standart
Halogen Projector Headlamps Standart
Extended Day Cab Optional
38” AeroCab FlatTop Sleeper Optional
Cab Air Suspension Optional
Kenworth Intermediate and High Back, Air and Toolbox Rider Seats Optional
2-Person Bench Seat Optional
Sears Driver and Rider Seats Optional
Rear Cab Corner Windows Optional
Kenworth Multifunction Driver Information Center Optional
4 Additional Gauge Locations Optional
Workstation Between Seats Optional
Xenon Headlamps Optional
Kenworth NAV+ HD Optional

Special Equipment and Options

T440

Aerodynamic Heated Mirrors Optional
Heavy Duty Crossmembers Optional
Factory Installed PTO’s Optional
Quiet Cab® Package Optional
Switch and Wiring for Customer Installed Fog Lights and Floodlights Optional
Left and Right Cab Mounted Halogen Spotlights Optional
Single and Dual Beacon Lights Optional
Factory Installed BOC Floodlights Optional
Daytime Running Lights Optional
Multi-function Engine Connector for Body Builder Interface Optional
Bodybuilder Harness Optional
Adjustable Telescoping Tilt Steering Column Optional
Remote Keyless Entry Optional
Bumper Delete Optional
NFPA Compliance Options Optional

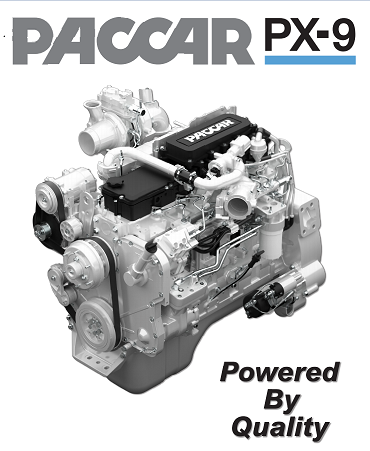

Kenworth T440 PACCAR PX9 Engine

On a Kenworth T440, things are quicker to get to, less strenuous to take apart and faster to put back together which means less downtime and lower repair bills. Even daily inspections have been simplified with all fluid level checks – coolant, oil, power steering and windshield washer reservoir – located in one easy-to-reach place.

At the heart of the T440 is a fully optimized and integrated drivetrain featuring the quality and proven reliability of the PACCAR PX engine. Expect longer service intervals, increased uptime, lower operating costs and higher resale value.

The 8.9-liter PACCAR PX-9 engine has one of the highest power-to-weight ratios in its class, with heavy-duty features like replaceable wet liners, roller cam followers, bypass oil filtration and targeted piston-cooling.

Kenworth T440 Engine
